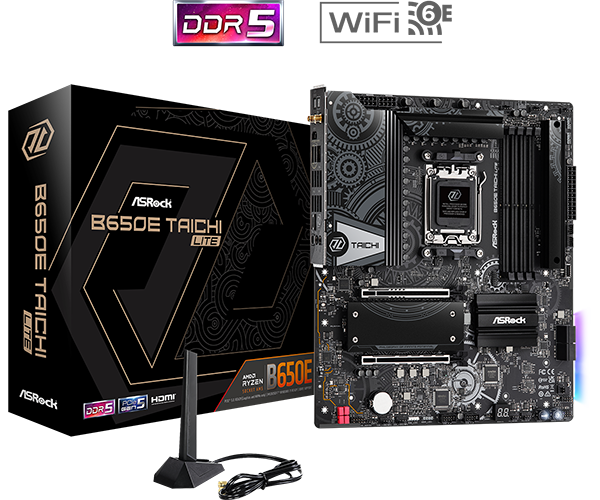

B650E Taichi Lite

Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
24+2+1 Power Phase, 105A SPS for Vcore+GT with Enlarged Heatsink Armor
8 Layer Server-Grade Low-Loss PCB
4 x DDR5 DIMMs
Supports Dual Channel, up to 7600+ (OC)
1 PCIe 5.0 x16, 1 PCIe 4.0 x16
Graphics Outputs Options : HDMI, USB4 Type-C
Realtek ALC4082 5.1 CH HD Audio Codec,
ESS SABRE 9218 DAC, WIMA Audio Caps
Nahimic Audio
4 SATA3, 1 Blazing M.2 (PCIe Gen5 x4)
2 Hyper M.2 (PCIe Gen4 x4)
1 USB4 Type-C
1 Front USB 3.2 Gen2x2 Type-C
3 Rear USB 3.2 Gen2 Type A
10 USB 3.2 Gen1 (8 Rear, 2 Front)
4 USB 2.0 (Front)
Killer E3100G 2.5G LAN,
Killer 802.11ax (WiFi 6E) + Bluetooth 5.3
Killer DoubleShot™ Pro
Supports ASRock Auto Driver Installer,
Lightning Gaming Ports,
BIOS Flashback, Ultra USB Power

This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.

Overview
Specification
Support

Where to Buy

Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.

Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

The server grade low loss PCB improves signal integrity, allowing motherboard to support PCIe 5.0 for both graphics card and M.2 SSD, it also improves memory OC potential to deliver the most extreme memory performance.

The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise.

Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. All B650E motherboards are built with 8-Layer and premium low-loss materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance up to 7600MHz and beyond by enabling the pre-tested profiles. Make sure the memory modules are AMD EXPO™/ Intel^® XMP capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

* There are certain risks involved with memory overclocking and may affect your system’s stability. Please realize that overclocking should be done at your own risk and expense. EXPO/XMP profile support may vary by different system configuration, memory modules and motherboard models. Please refer to Memory QVL for the completed support list.

The Blazing OC Tuner allows AM5 CPU to switch between OC mode and PBO(Precision Boost Overdrive) mode when the CPU current hits threshold. Anything above current threshold will engage manual OC mode; if below current threshold then will engage Precision Boost Overdrive mode. This idea is to combine overclocking on all cores and automatic boost on a single core to get the best performance out of your CPU. There is no need to enter BIOS to setup up, you can modify all the settings on time under OS.

PBO(Precision Boost Overdrive) is an automatic performance-maximizing technology that is able to improve your PC’s performance by raising clock speeds based on the conditions inside your PC, AMD’s processors is equipped with intelligent thermal sensors designed to analyze conditions inside your PC and make the “go faster” decision as often as possible, please ensure system cooling is sufficient before enabling PBO.

The Killer Ethernet controller is designed specially for competitive gamers and performance-hungry users, this motherboard comes with both Killer E3100 2.5G Ethernet & WiFi 6E solution, the enhanced detection and prioritization engine provides the ultimate networking experience for gaming and multimedia applications.

Killer DoubleShot Pro allows the use of both the Killer Wireless and Killer Ethernet interfaces work at the same time which will give the end user max throughput as high as 4.9 Gbps, it automatically utilizes the fastest network connection for high priority traffic, this ensures the highest priority traffic will always be put on the fastest and most reliable link.

● Speed: DoubleShot Pro Technology delivers the maximum speed and throughput possible for your computer by allowing your computer to use all of your network adapters at the same time.
● Intelligence: The Killer Prioritization Engine to automatically classify and prioritize high priority traffic like online games, streaming video, and high quality audio to be handled by the systems fastest network interface. This will provide users with a higher quality experience with fewer interruptions.
● Maximum Control: Utilize the Killer Control Center 2.0 to see and manage which network connection your applications are using. Set limits using Visual Bandwidth Control or shut them down completely with application blocking, so they don’t interfere with higher priority apps.

Wi-Fi 6E 802.11ax

WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.

*The availability of Wi-Fi 6E (6GHz) may vary between different countries.
Wi-Fi 6E (6GHz band) will be supported by Microsoft^® Windows^® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows^® Update and software updates once available.
A 6GHz compatible router is required for 6E functionality.

USB4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast 40G bandwidth/32G data transfer and supports up to 9V@3A 27W with the next generation PD 3.0 for superfast charging!

Enjoy the superfast charging rate, up to 9V@3A 27W with the next generation PD 3.0!

*Actual charging rate may differ between devices.

Embrace the audio stunning performance with ES9218 SABRE DAC!
√ True Hi-Fi Audio. No distorted digital signal
√ 130dB SNR
√ 112dB THD+N and supports higher impedance up to 600 Ω headphone

Optimized for high end audio applications! Deliver crystal and balanced sound to satisfy even the pickiest audiophile.

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
●Static Noise Suppression
●Echo Cancellation
●Lateral Sound Cancellation
●Voice Stabilizer

●Sound Tracker
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

●Works on any devices!
Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.

POLYCHROME RGB

In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
*A Group=Addressable RGB Header, B Group=RGB Header

The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128GB/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.

The extra large aluminum alloy M.2 heatsink effectively improves heat dissipation to keep those high speed M.2 SSDs as cool as possible, it is able to give better stability while maintaining top performance.

Tired of dropping screws or screws missing inside chassis?
The enhanced M.2 heatsink with anti-drop screw design that make sure installation process more easily.

Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!
Step1: Install Auto Driver Installer
Step2: ADI will automatically download and install all necessary drivers.
Step3: Done!

Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.

Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.

Unique Feature
Superb Productivity
- PCIe Gen5 (Graphics, M.2)
- Dual Channel DDR5
- USB4 Type-C Port (40 Gb/s)
Rock-Solid Durability
- Server-Grade Low-Loss PCB
- 24+2+1 Power Phase, 105A SPS for VCore+GT with Enlarged Heatsink Armor
- Flexible Integrated I/O Shield
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
Ultrafast Gaming
- Killer 2.5G LAN, Killer
802.11ax Wi-Fi 6EModule
- Killer DoubleShot™ Pro
- ASRock Lightning Gaming Ports
EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer
CPU
- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*
- Supports ASRock Hyper BCLK Engine

*The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.
Chipset
- AMD B650
Memory
- Dual Channel DDR5 Memory Technology
- 4 x DDR5 DIMM Slots
- Supports DDR5 ECC/non-ECC, un-buffered memory up to 7600+(OC)*
- Max. capacity of system memory: 256GB
- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

*Please refer to Memory Support List for more information.
BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support
Graphics
Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 1 x USB4, supports HDCP 2.3 and max. resolution up to 8K 60Hz*

*Only the CPU's embedded graphics can be displayed through USB4 ports. If you want to display to a Type-C monitor, please use AM5 Ryzen™ 7000 processors with embedded graphics.
USB4 graphics output may not be compatible with certain Type-C monitors. Please use graphics card outputs instead.
Audio
- 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
- WIMA Audio Capacitors (For Front Outputs)
- ESS SABRE9218 DAC for Front Panel Audio (130dB SNR)
- Individual PCB Layers for R/L Audio Channel
- Impedance Sensing on Rear Out port
- Nahimic Audio
LAN
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Killer E3100G
- Supports Killer LAN Software
- Supports Killer DoubleShot™ Pro
Wireless LAN
- 802.11ax Wi-Fi 6E Module
- Supports IEEE 802.11a/b/g/n/ac/ax
- Supports Dual-Band 2x2 160MHz with extended 6GHz band support*
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 5.3 + High speed class II
- Supports MU-MIMO
- Supports Killer LAN Software
- Supports Killer DoubleShot™ Pro

*Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows^® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows^® Update and software updates once available.
A 6GHz compatible router is required for 6E functionality.
Slots
CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*
- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

- 15μ Gold Contact in VGA PCIe Slot (PCIE1)

*If M2_3 is occupied, PCIE2 will be disabled.
Supports NVMe SSD as boot disks
Storage
CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2230/2242/2260/2280/22110 PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
ASMedia ASM1061:
- 4 x SATA3 6.0 Gb/s Connectors

*Supports NVMe SSD as boot disks
If M2_3 is occupied, PCIE2 will be disabled.
RAID
- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*

*Requires additional M.2 NVMe expansion cards to support RAID 10
USB
- 1 x USB4 Type-C (Rear)
- 1 x USB 3.2 Gen2x2 Type-C (Front)
- 3 x USB 3.2 Gen2 Type-A (Rear)
- 10 x USB 3.2 Gen1 (8 Rear, 2 Front)
- 4 x USB 2.0 (Front)

*All USB ports support ESD Protection
Connector
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header*
- 3 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 6 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (ReDriver)
- 1 x Dr. Debug with LED
- 1 x Power Button with LED
- 1 x Reset Button with LED

*Supports in total up to 12V/3A, 36W LED Strip

**Support in total up to 5V/3A, 15W LED Strip

***CPU_FAN1 supports the fan power up to 1A (12W).

****CPU_FAN2/WP_3A supports the fan power up to 3A (36W).

*****CHA_FAN1~6/WP support the fan power up to 2A (24W).

*****CPU_FAN2/WP_3A and CHA_FAN1~6/WP can auto detect if 3-pin or 4-pin fan is in use.
Rear Panel I/O
- 2 x Antenna Ports
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 1 x USB4 Type-C Port (40 Gb/s)*
- 3 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (ReDriver) (USB32_12 are Lightning Gaming Ports. USB32_11 supports Ultra USB Power.)
- 8 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub)
- 1 x RJ-45 LAN Port
- 1 x Clear CMOS Button
- 1 x BIOS Flashback Button
- 1 x Line Out Jack (Gold Audio Jack)
- 1 x Microphone Input Jack (Gold Audio Jack)

*Supports USB PD 3.0 up to 9V@3A (27W) / 5V@3A (15W) charging
Software and UEFI
Software
- ASRock Motherboard Utility (A-Tuning)
- Killer Control Center
- ASRock Polychrome SYNC*
UEFI
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories
- 1 x User Manual
- 4 x SATA Data Cables
- 1 x Wireless Dongle USB Bracket
- 1 x ASRock WiFi 2.4/5/6 GHz Antenna
- 3 x Screws for M.2 Sockets
- 1 x Standoff for M.2 Socket
Form Factor
- EATX Form Factor: 12.0-in x 10.5-in, 30.5 cm x 26.7 cm
- 8 Layer PCB
OS
- Microsoft Windows^® 10 64-bit / 11 64-bit
Certifications
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)

Description	Language	Download
RoHS	English	Global	China
FCC	English	Global	China
CE Declaration of Conformity	English	Global	China
UKCA Declaration of Conformity	English	Global	China
User Manual	English	Global	China
User Manual	French	Global	China
User Manual	Deutsch (German)	Global	China
User Manual	日本語 (Japanese)	Global	China
User Manual	Korean	Global	China
User Manual	Spanish	Global	China
User Manual	繁體中文 (T.Chinese)	Global	China
User Manual	简体中文 (S.Chinese)	Global	China
Install EATX Motherboard	English	Global	China
Software/BIOS Setup Guide	English	Global	China
Software/BIOS Setup Guide	日本語 (Japanese)	Global	China
Software/BIOS Setup Guide	繁體中文 (T.Chinese)	Global	China
Software/BIOS Setup Guide	简体中文 (S.Chinese)	Global	China
RAID Installation Guide	English	Global	China

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.
