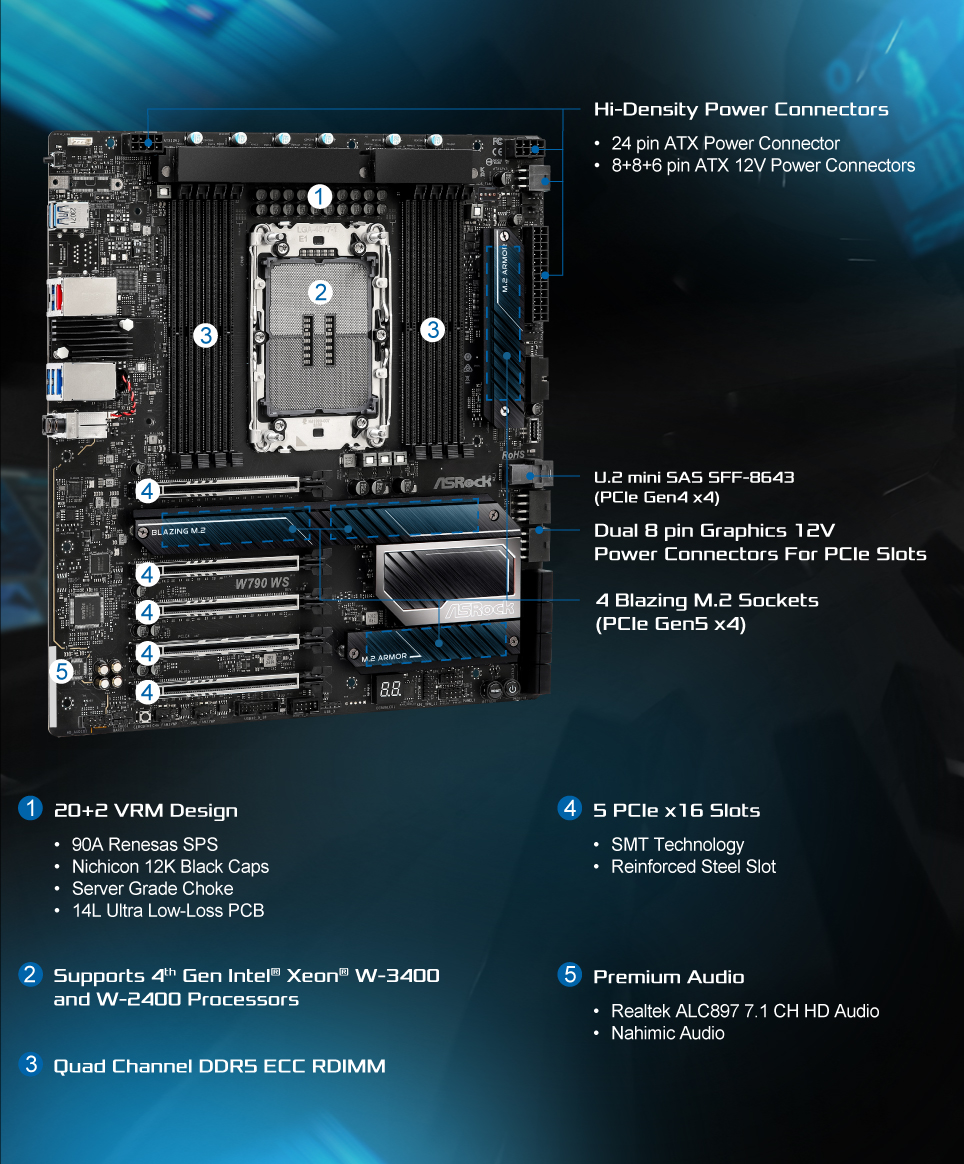

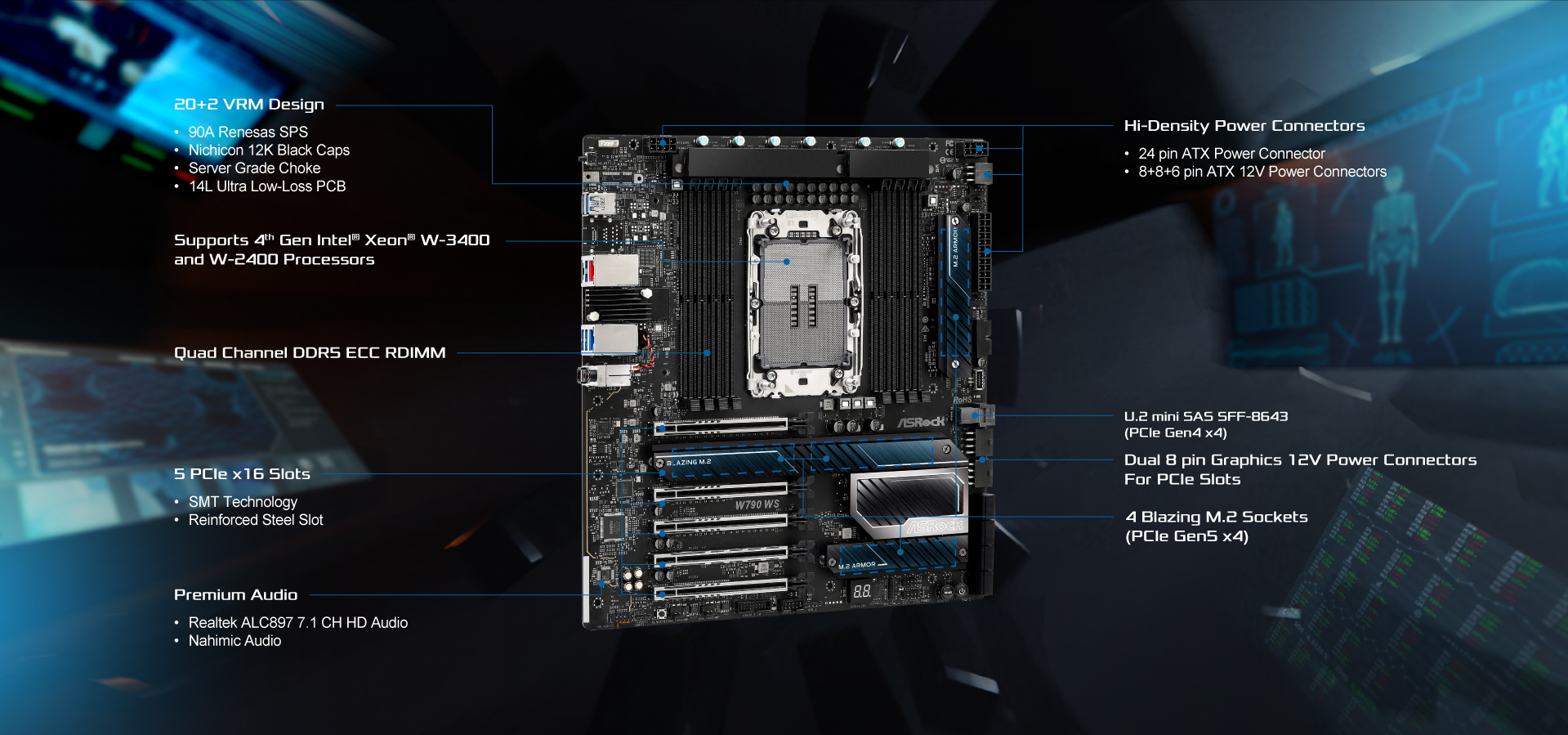

• Unique Feature
  Superb Productivity
  - PCIe Gen5 (Graphics, M.2)
  - Quad Channel DDR5
  Rock-Solid Durability

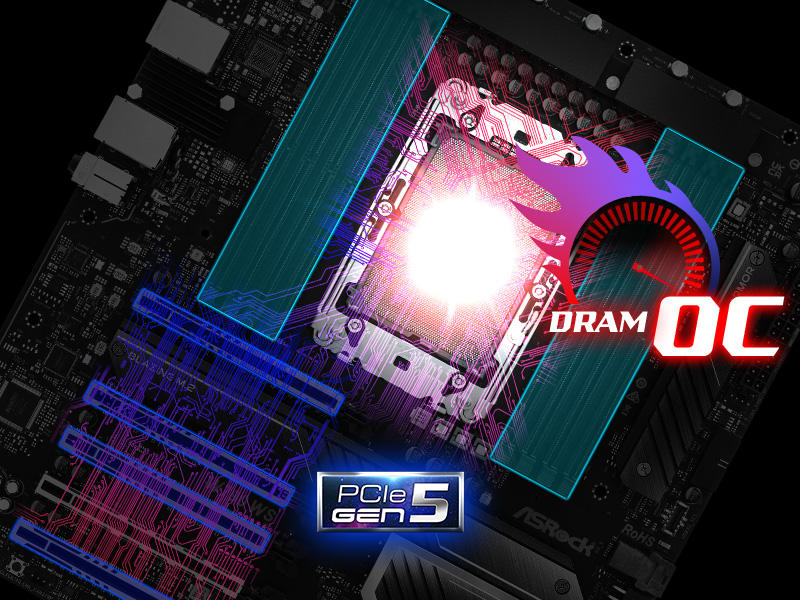

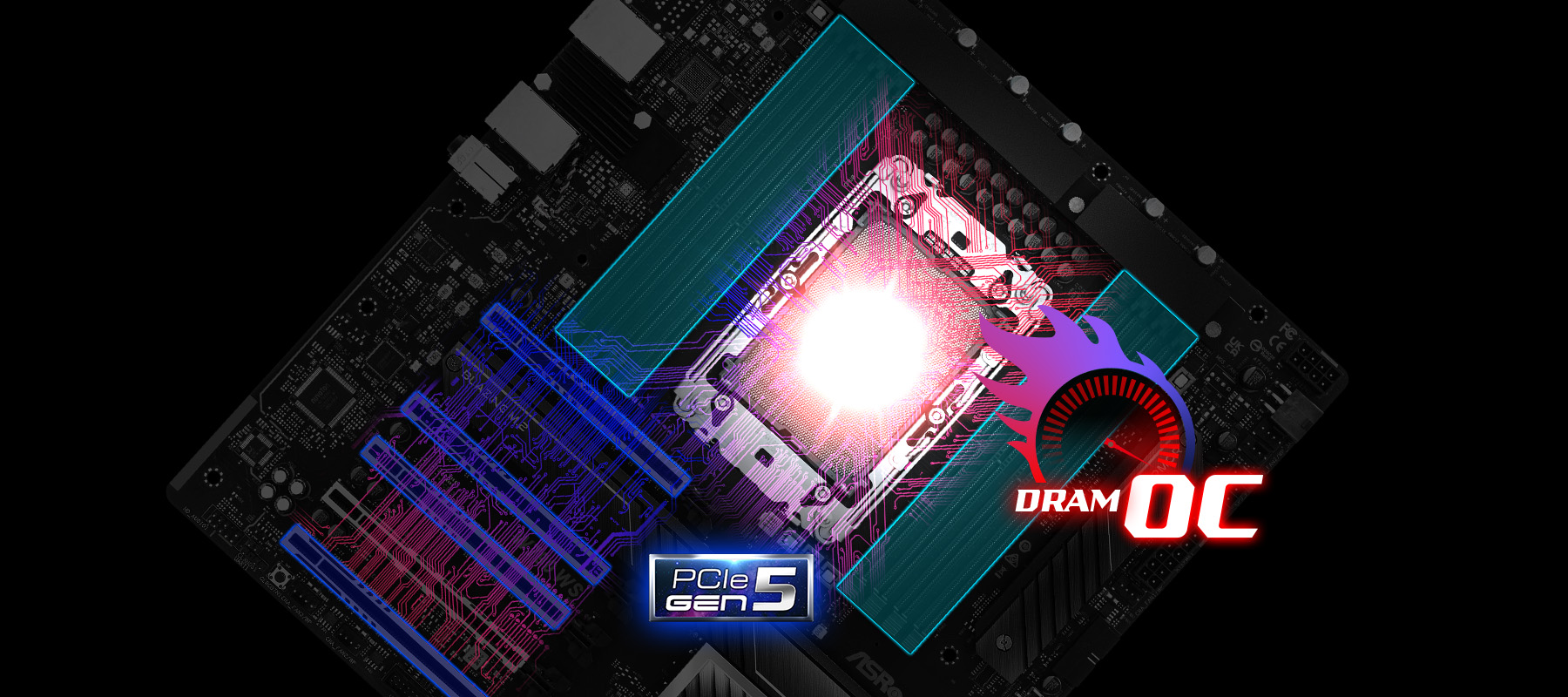

  - Ultra Low-Loss PCB

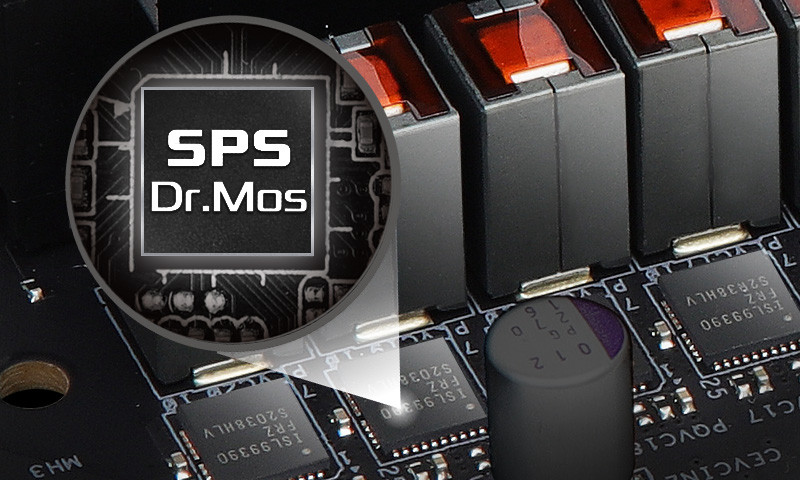

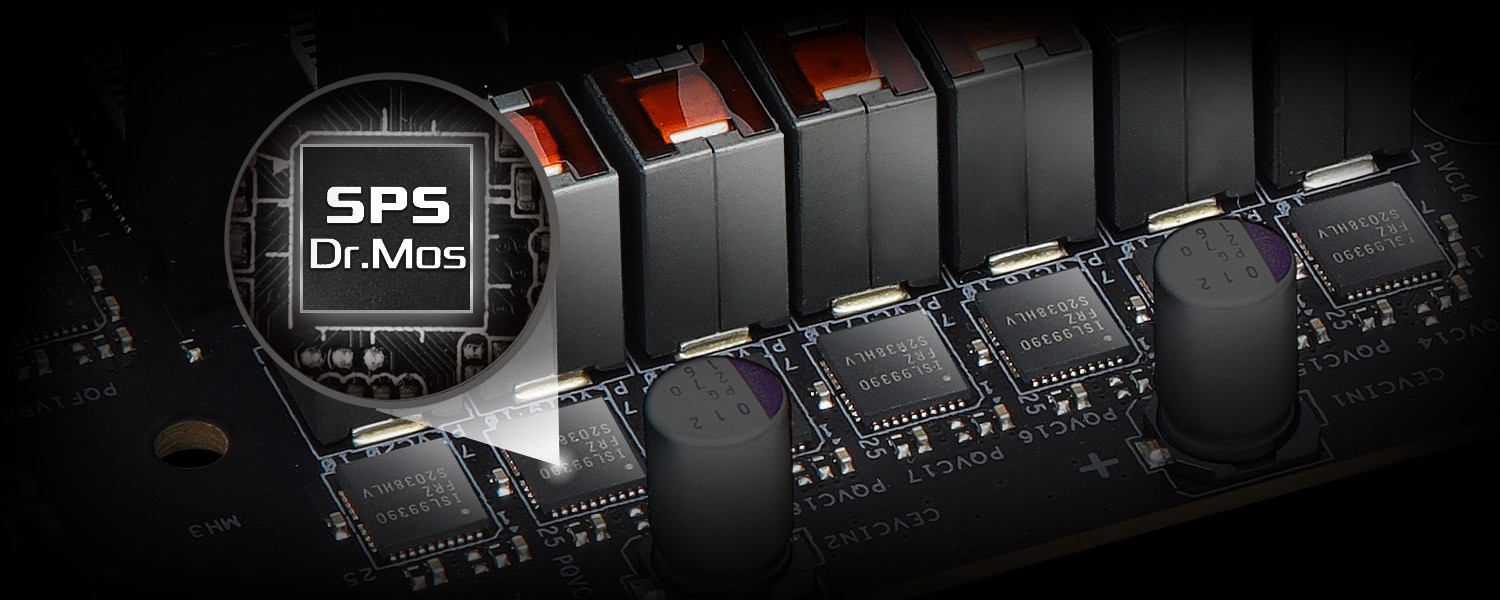

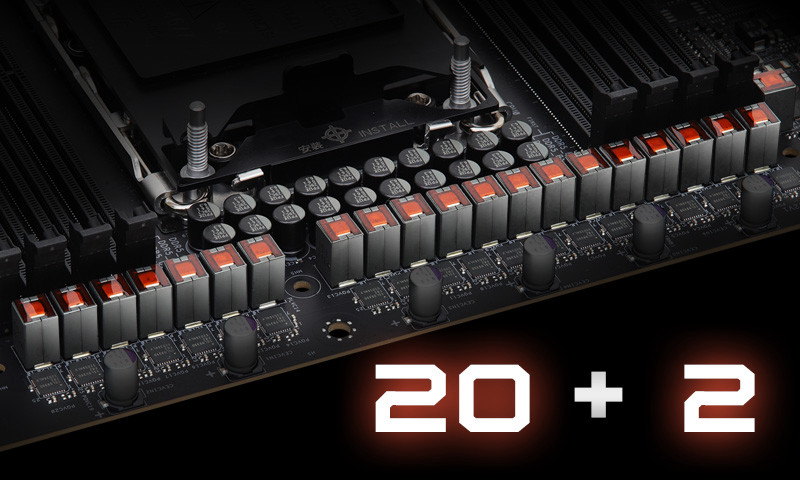

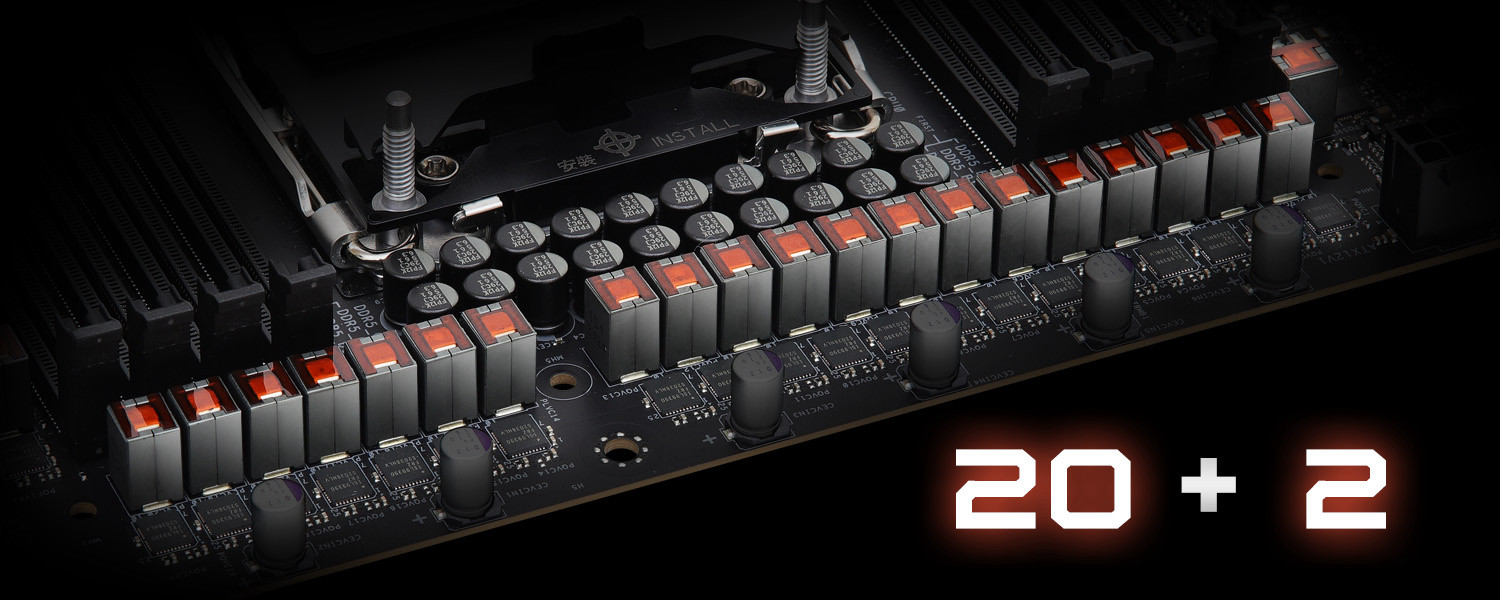

  - 20+2 Power Phase, 90A SPS
  - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
  Ultrafast Connectivity
  - Marvell (Aquantia) 10GbE LAN
  - Intel^® 2.5GbE LAN
  - Intel^® vPro for Workstations with Intel^® Advanced Management Technology
  EZ Update
  - BIOS Flashback Button
  - ASRock Auto Driver Installer
• CPU
  - Supports 4^th Gen Intel^® Xeon^® W-3400 and W-2400 Processors (LGA4677)
  - Supports Intel^® Boot Guard
  - Supports Intel^® Trusted Execution Technology (Intel^® TXT)
  - Supports Intel^® Turbo Boost Technology
  - Supports Intel^® Virtualization Technology (Intel^® VT)
  - Supports Intel^® Hyper-Threading Technology (Intel^® HT Technology)
  - Supports Intel^® Data Streaming Accelerator (Intel^® DSA)
  - Supports CXL (Compute Express Link) 1.1
• Chipset
  - Intel^® W790
  - Supports Intel^® vPro Technology
  - Supports Intel^® Active Management Technology
• Memory
  - Quad Channel DDR5 Memory Technology
  - 8 x DDR5 DIMM Slots*
  - Supports DDR5 ECC, buffered memory (RDIMM/ RDIMM-3DS/ RDIMM-9x4) up to 6800+(OC)**
  - Max. capacity of system memory: 2TB



  *S3 (Sleep) mode is supported only when 1 / 2 / 4 DIMMs memory modules are installed.
  1DPC Up to 6800+ MHz (OC), 4800 MHz Natively for Xeon^® W9, Xeon^® W7 and Xeon^® W5.
  2DPC Up to 6200+ MHz (OC), 4400 MHz Natively for Xeon^® W9, Xeon^® W7 and Xeon^® W5.
  Supports 4400 MHz Natively for Xeon^® W3, W5-3423 and W5-3433. Overclocking is not supported.

  **Actual support may vary by CPU
• BIOS
  - 256Mb AMI UEFI Legal BIOS with GUI support
• Graphics
  - n/a
• Audio
  - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  - Nahimic Audio
• LAN
  1 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Marvell (Aquantia) AQC113CS)
  - Support Wake-On-LAN
  - Support PXE
  1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Intel^® I226LM)
  - Support Wake-On-LAN
  - Support PXE
  - Supports Intel^® vPro Technology
• Slots
  CPU:

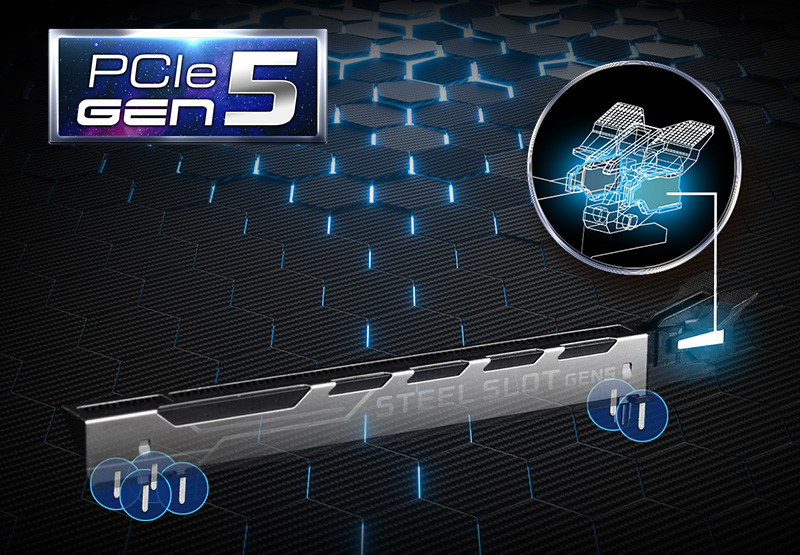

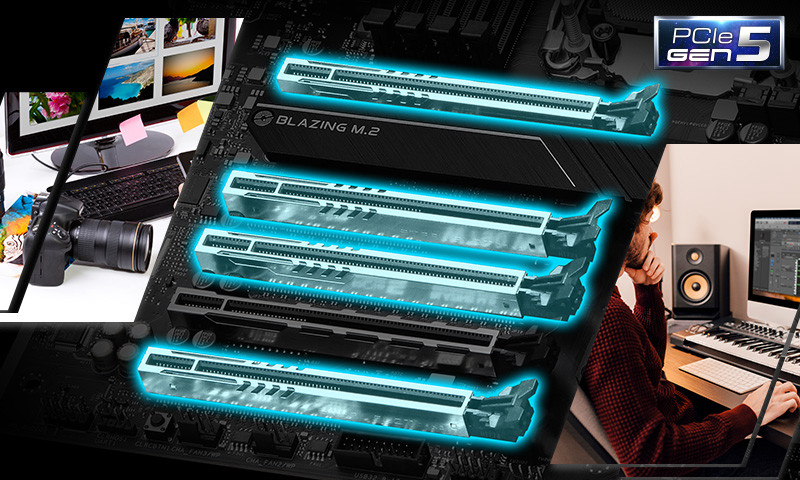

  - 4 x PCIe 5.0 x16 Slots (PCIE1/PCIE3 at x16; PCIE2/PCIE5 at x8)*
  Chipset:
  - 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode*
  - 15μ Gold Contact in VGA PCIe Slots



  * Supports NVMe SSD as boot disks

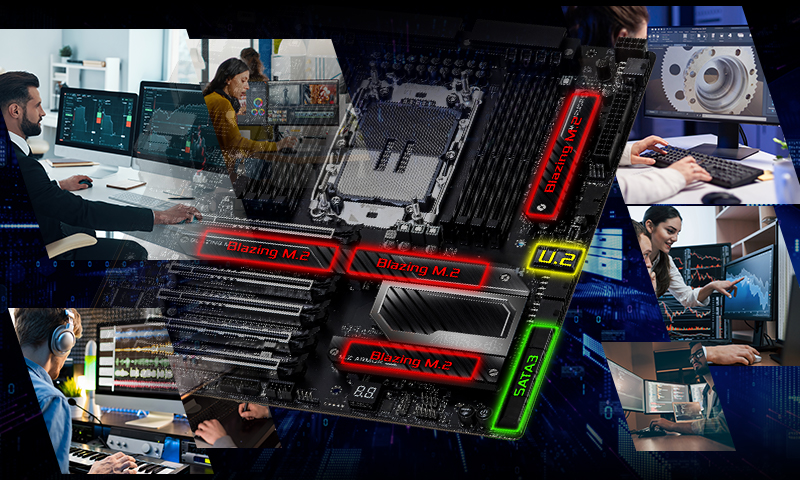

• Storage
  CPU:

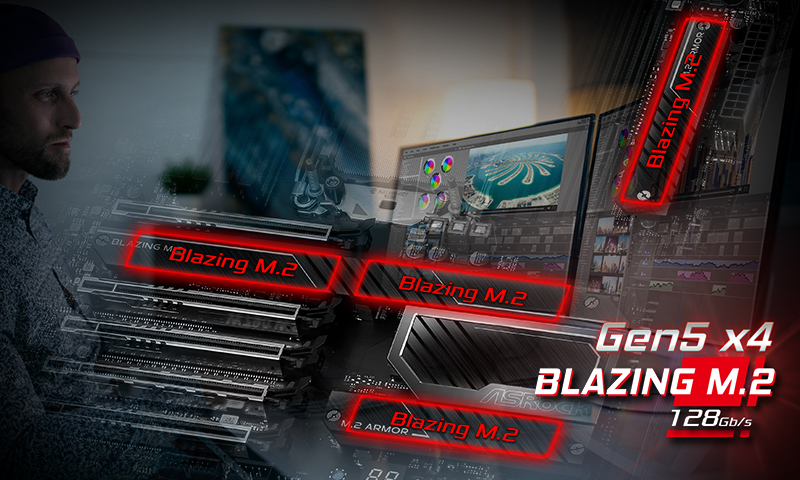

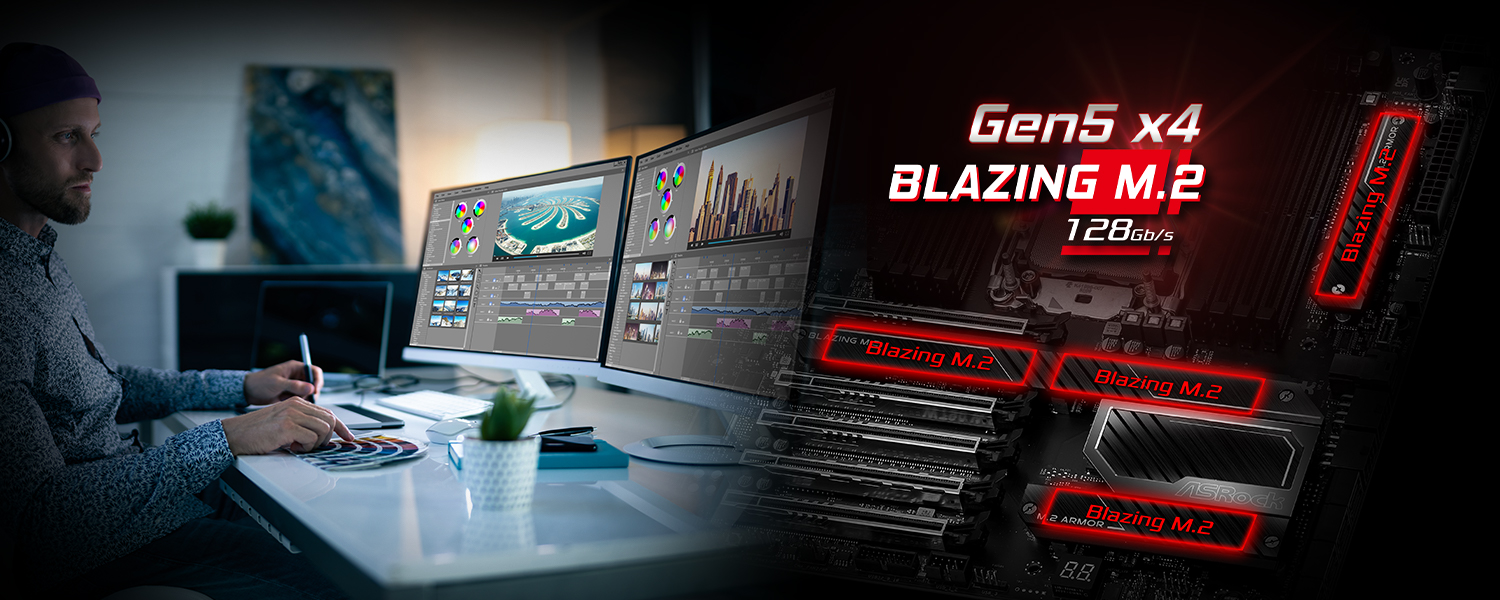

  - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2230/2242/2260/2280 PCIe Gen5x4 (128 Gb/s) mode*
  - 2 x Blazing M.2 Sockets (M2_2 and M2_3, Key M), support type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*
  - 1 x Blazing M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*
  Chipset:
  - 8 x SATA3 6.0 Gb/s Connectors
  - 1 x U.2 Connector, supports PCIe Gen4x4 (64 Gb/s) mode



  * Supports Intel^® Volume Management Device (VMD)
  Supports NVMe SSD as boot disks
• RAID
  - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices*



  * Requires additional M.2 NVMe expansion cards to support RAID 10
• USB
  - 1 x USB 3.2 Gen2x2 Type-C (Front)
  - 2 x USB 3.2 Gen2 Type-A (Rear)
  - 7 x USB 3.2 Gen1 (3 Rear, 4 Front)
  - 3 x USB 2.0 (Front)



  * All USB ports support ESD Protection
• Connector
  - 1 x Virtual RAID On CPU Header
  - 1 x SPI TPM Header
  - 1 x Chassis Intrusion and Speaker Header
  - 1 x CPU Fan Connector (4-pin)*
  - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
  - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
  - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
  - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) (for Motherboard)
  - 1 x 6 pin 12V Power Connector (Hi-Density Power Connector) (for Motherboard)****
  - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) (for PCIe card)*****
  - 1 x Front Panel Audio Connector
  - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports)
  - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
  - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
  - 1 x Clear CMOS Button
  - 1 x Dr. Debug with LED
  - 1 x Power Button with LED
  - 1 x Reset Button with LED



  * CPU_FAN1 supports the fan power up to 1A (12W).

  ** CPU_FAN2/WP_3A supports the fan power up to 3A (36W).

  *** CHA_FAN1~3/WP support the fan power up to 2A (24W).
  CPU_FAN2/WP_3A and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.

  **** It is optional to connect an ATX 12V 6-pin Cable to ATX12V3, which provides more power for overclocking.

  ***** Use either GTX_12V1 or GTX_12V2 when you install one or two PCIe card(s). Use both connectors when you install more than two PCIe cards.Otherwise, the system may not boot up properly.

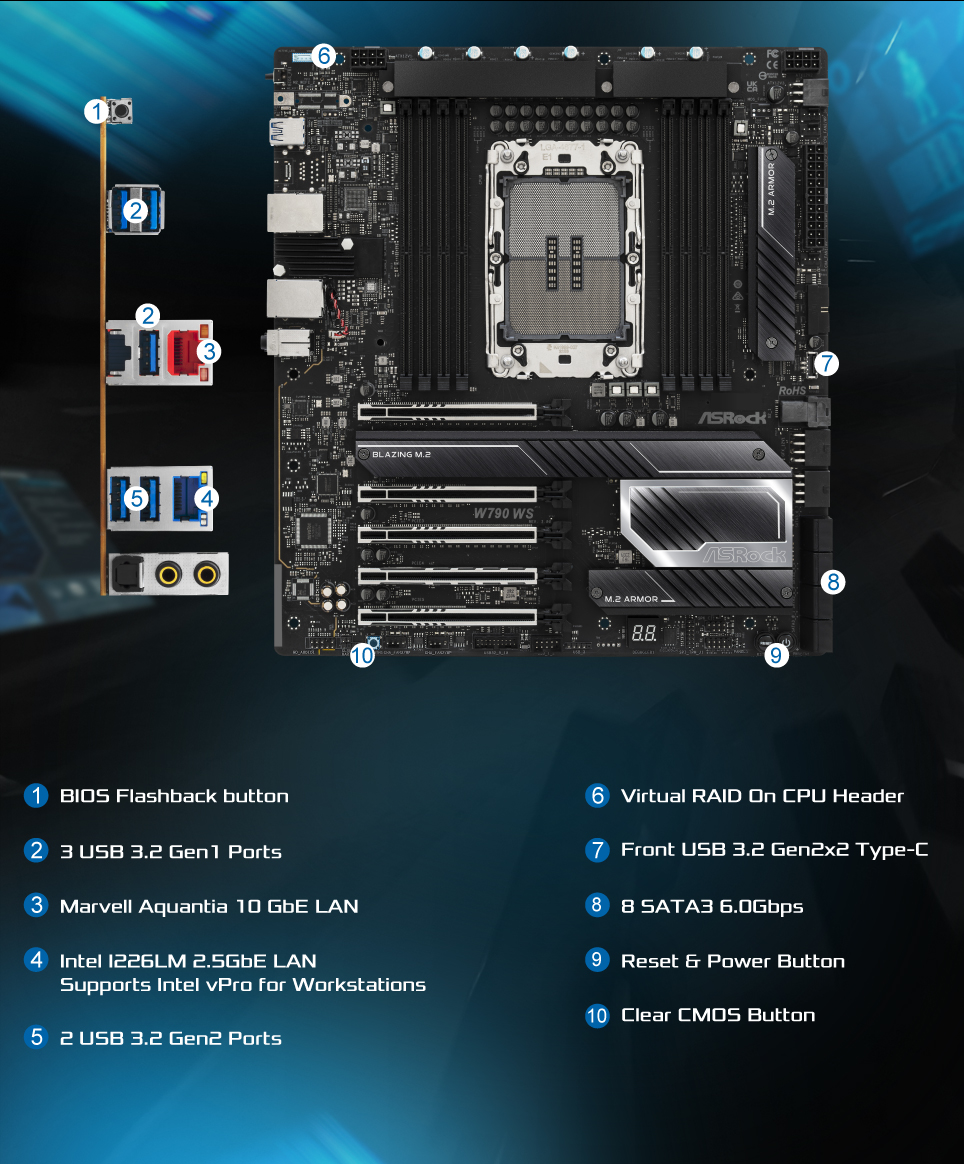

• Rear Panel I/O
  - 1 x Optical SPDIF Out Port
  - 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
  - 3 x USB 3.2 Gen1 Type-A Ports
  - 2 x RJ-45 LAN Ports
  - 1 x BIOS Flashback Button
  - 1 x Line Out Jack (Gold Audio Jack)
  - 1 x Microphone Input Jack (Gold Audio Jack)
• Software and UEFI
  Software
  - ASRock Motherboard Utility (A-Tuning)
  UEFI
  - ASRock My Favorites in UEFI
  - ASRock Auto Driver Installer
  - ASRock Instant Flash
  - ASRock Easy RAID Installer



  *These utilities can be downloaded from ASRock Live Update & APP Shop.
• Accessories
  - 1 x User Manual
  - 1 x I/O Shield
  - 4 x SATA Data Cables
  - 1 x CPU Carrier for LGA 4677 E1A
  - 1 x CPU Carrier for LGA 4677 E1B
  - 4 x Screws for M.2 Sockets
  - 2 x Standoffs for M.2 Sockets
• Form Factor
  - EATX Form Factor: 12.0-in x 10.9-in, 30.5 cm x 27.7cm
  - 14 Layer PCB
• OS
  - Microsoft Windows^® 10 64-bit / 11 64-bit
  - Linux



  * Linux supported by Intel^® VIA^® the upstreaming of Intel^® Linux drivers to the Linux Open Source Community. Adoption into individual Linux distributions is dependent upon the OS vendor
• Certifications
  - FCC, CE
  - ErP/EuP ready (ErP/EuP ready power supply is required)
  - CEC Tier II ready
