Premium Features

Product Title

Excellent Memory Overclocking

Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
Product Title Product Title
* Performance results may vary between different CPUs and hardware configurations.
** There are certain risks involved with memory overclocking and may affect your system’s stability. Please realize that overclocking should be done at your own risk and expense.

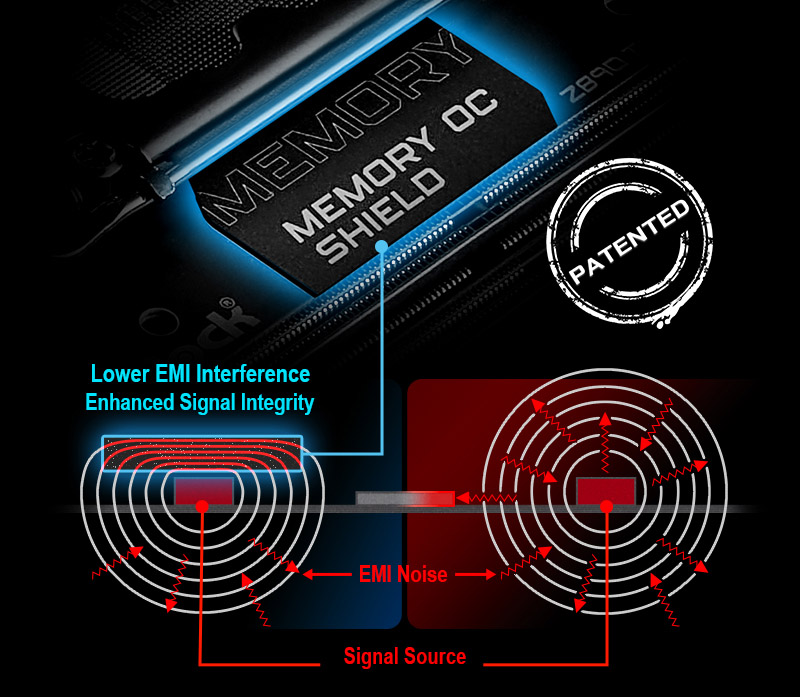

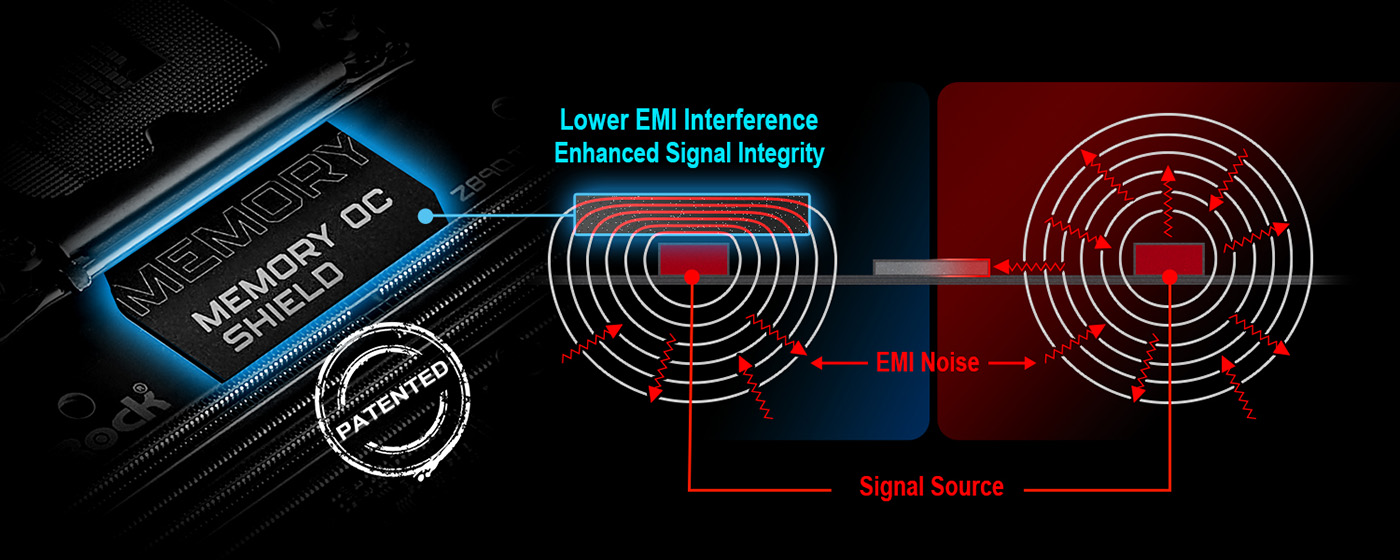

Memory OC Shield(Patented)

ASRock's exclusive Memory OC Shield is a patented feature engineered to reduce electromagnetic interference (EMI) that could affect memory overclocking. By shielding memory modules from EMI noise and optimizing the layout, the Memory OC Shield enhances stability and reliability during high-frequency operations, enabling users to push their systems to the maximum potential.

*Features may vary by model. *Patent number M663406.
Product Title Product Title

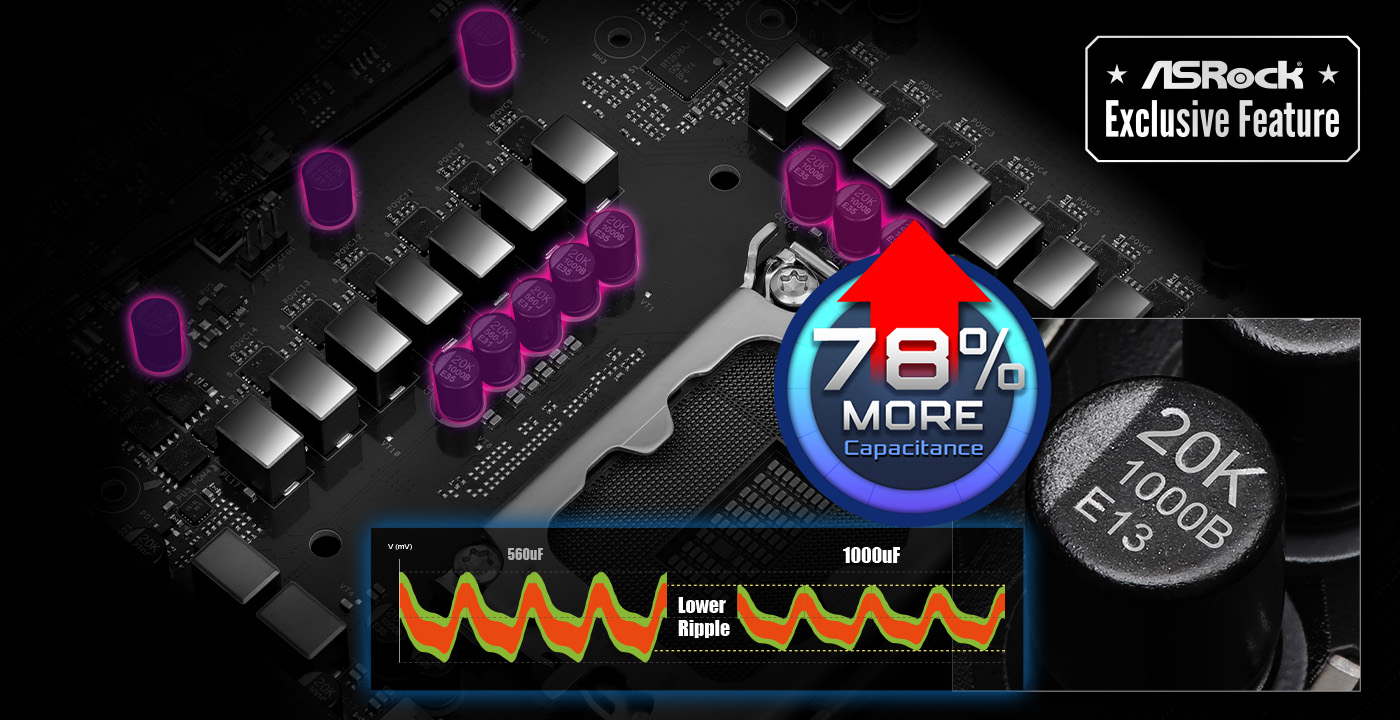

Exclusive 20K Cap with 1000uF Capacitance

The upgraded 20K Black capacitor not only extends the lifespan to 20,000 hours but also increases the capacitance value from 560uF to 1000uF, bringing several benefits:

● Higher Capacitance: Greater charge storage for better support under high loads.
● Lower Ripple: Reduced power output fluctuations, improving quality.
● More Stable Output Current: Stable power supply, minimizing voltage impacts.
● Better Performance & System Stability: Increased reliability and consistent performance.
Product Title Product Title

mATX Model with 4 M.2 Slots

Unlock enhanced storage capacity with the mATX model featuring 4 M.2 slots—one more than the typical setup—ideal for users needing additional high-speed storage options.

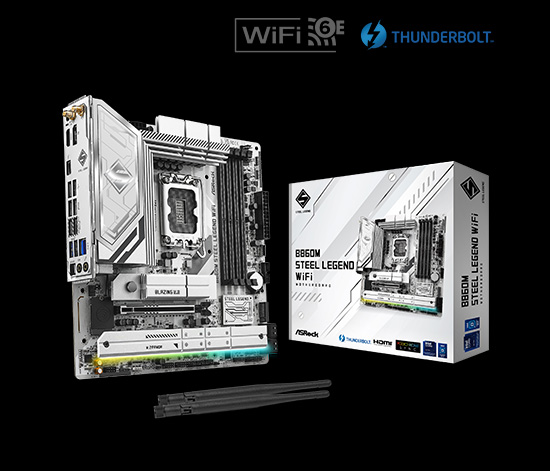

* This configuration is exclusively featured on the B860M Lightning WiFi and B860M Steel Legend WiFi.
Product Title Product Title

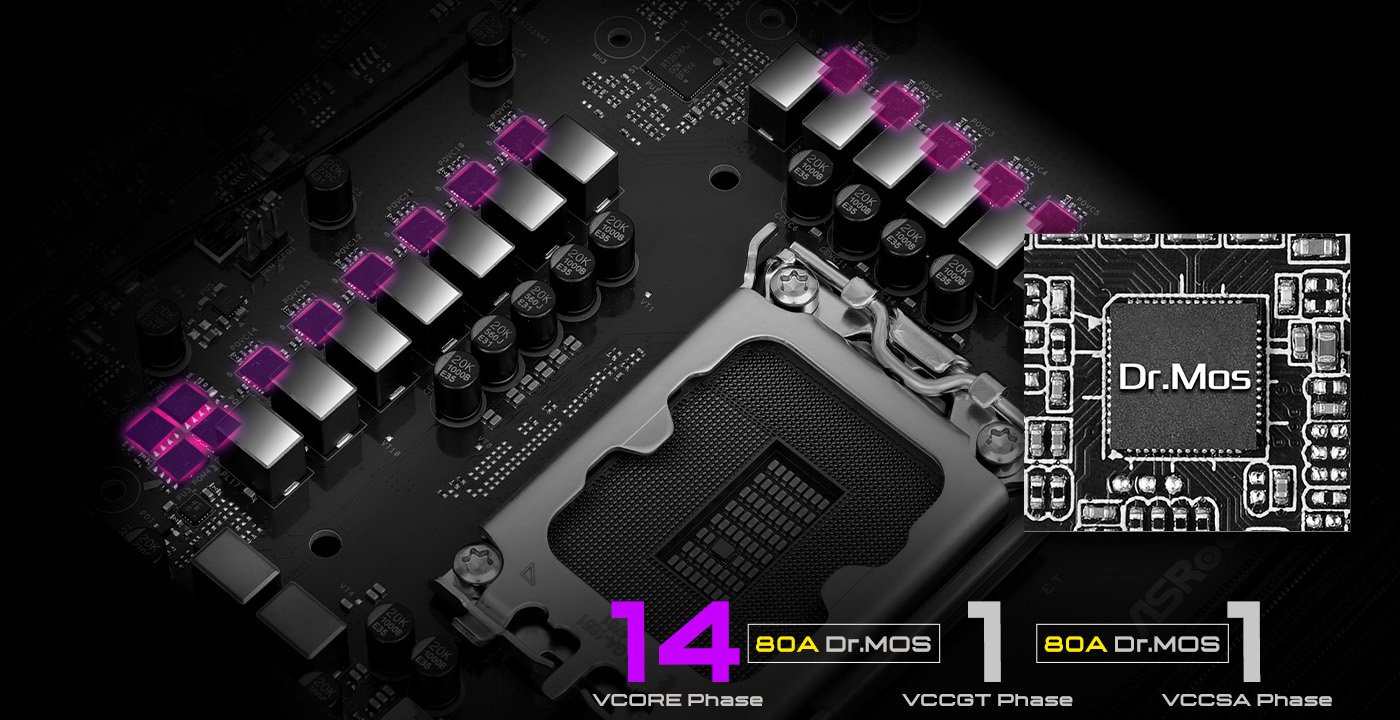

14+1+1+1+1 Power Phase Design, 80A Dr.MOS

Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.
Product Title Product Title

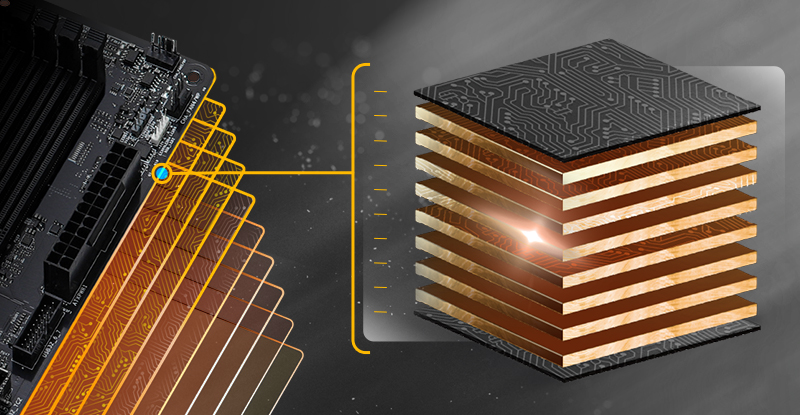

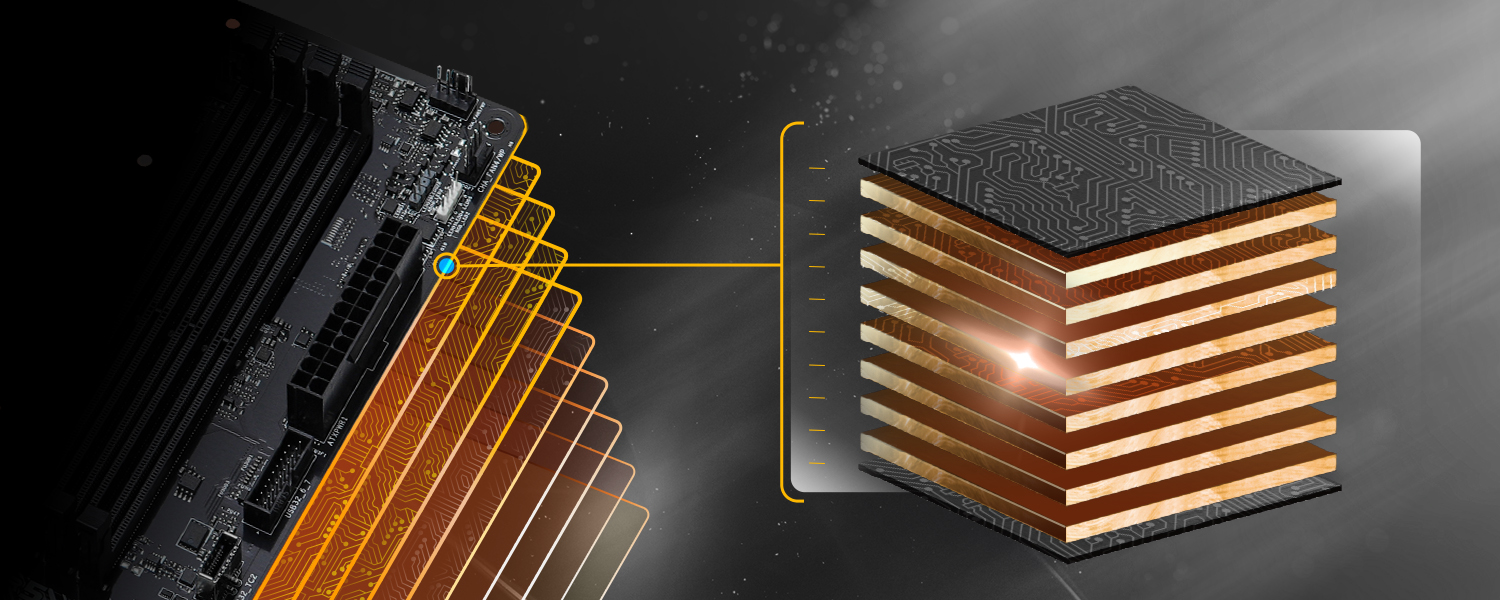

10 Layer PCB Design

The 10 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise.

Product Title Product Title

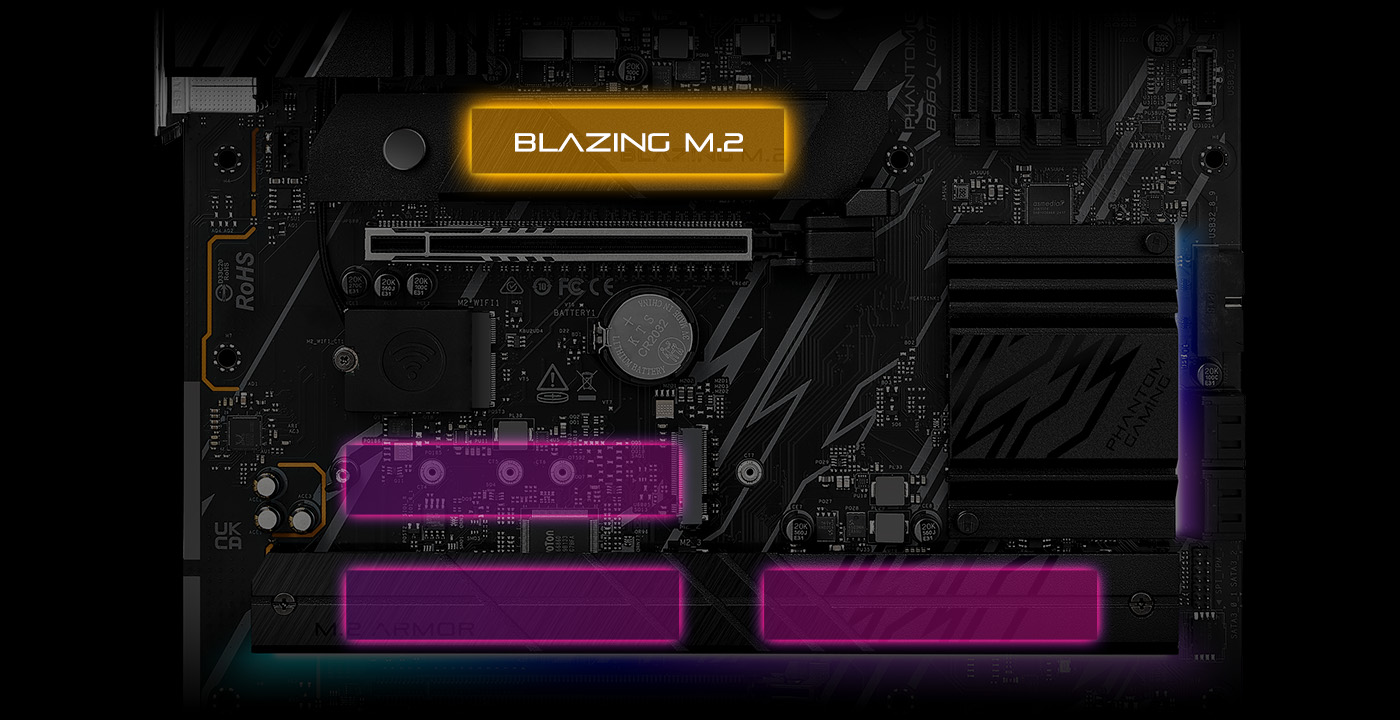

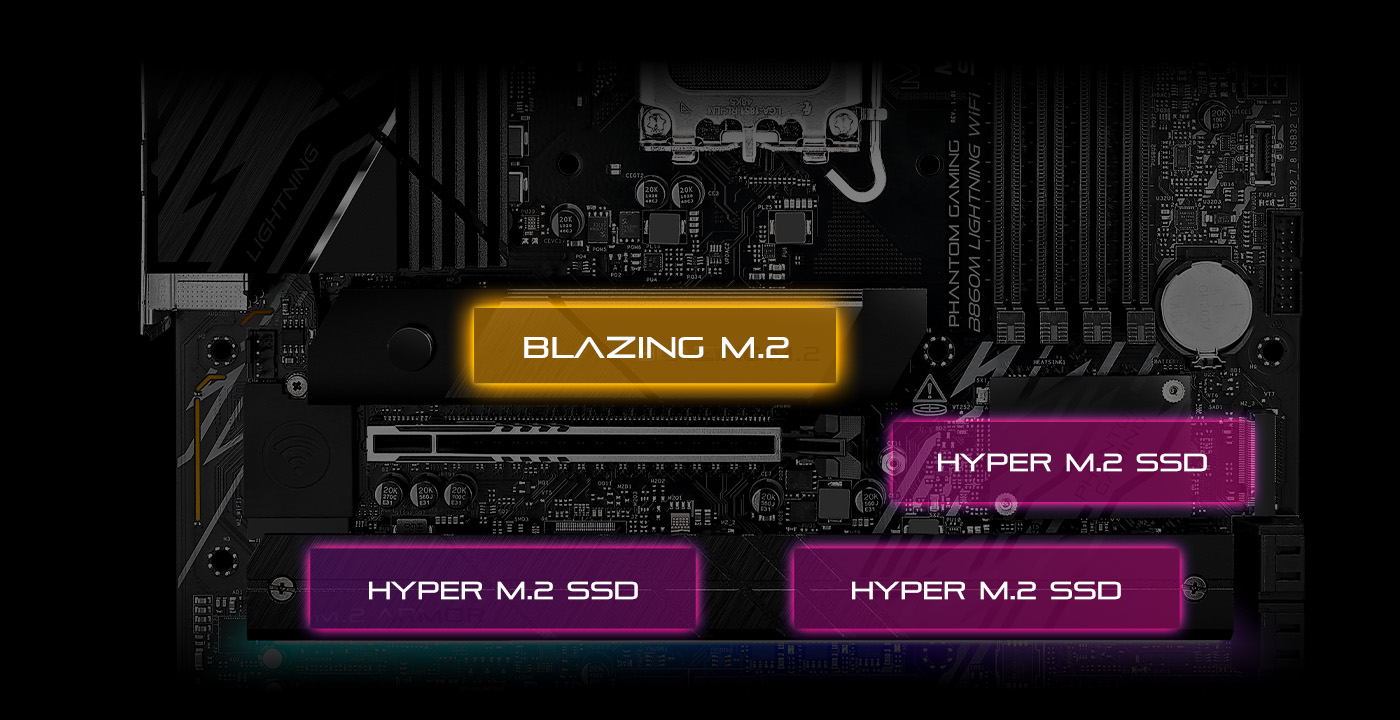

High Speed M.2 Solution

The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.

Product Title Product Title

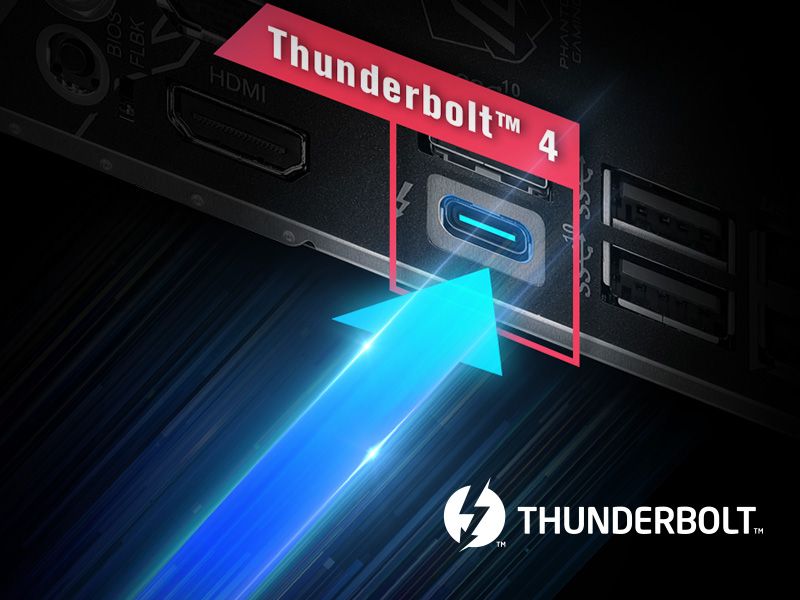

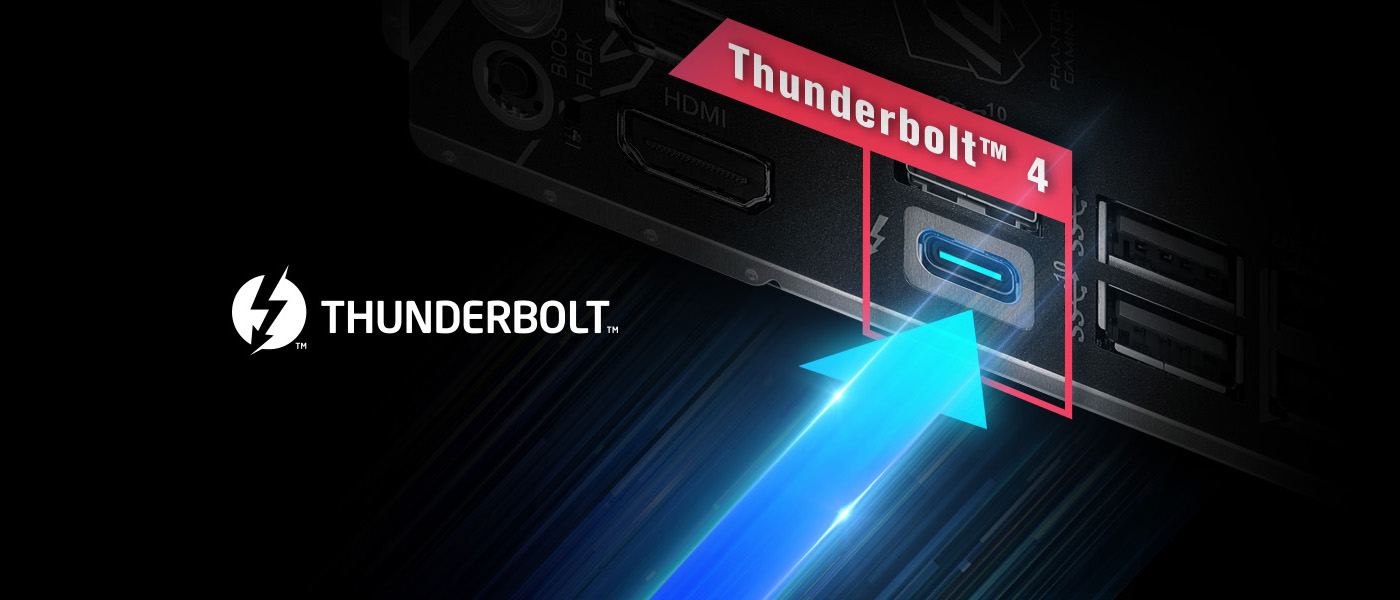

Dual Thunderbolt™ 4 Type-C

Thunderbolt™ 4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and connects external monitors, Thunderbolt™, and USB devices with a single Thunderbolt 4 cable.

Product Title Product Title

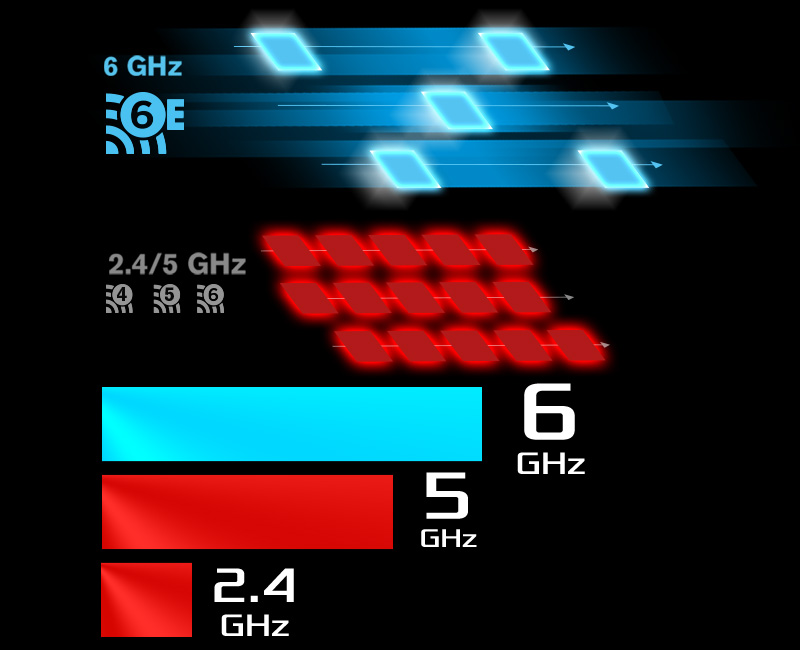

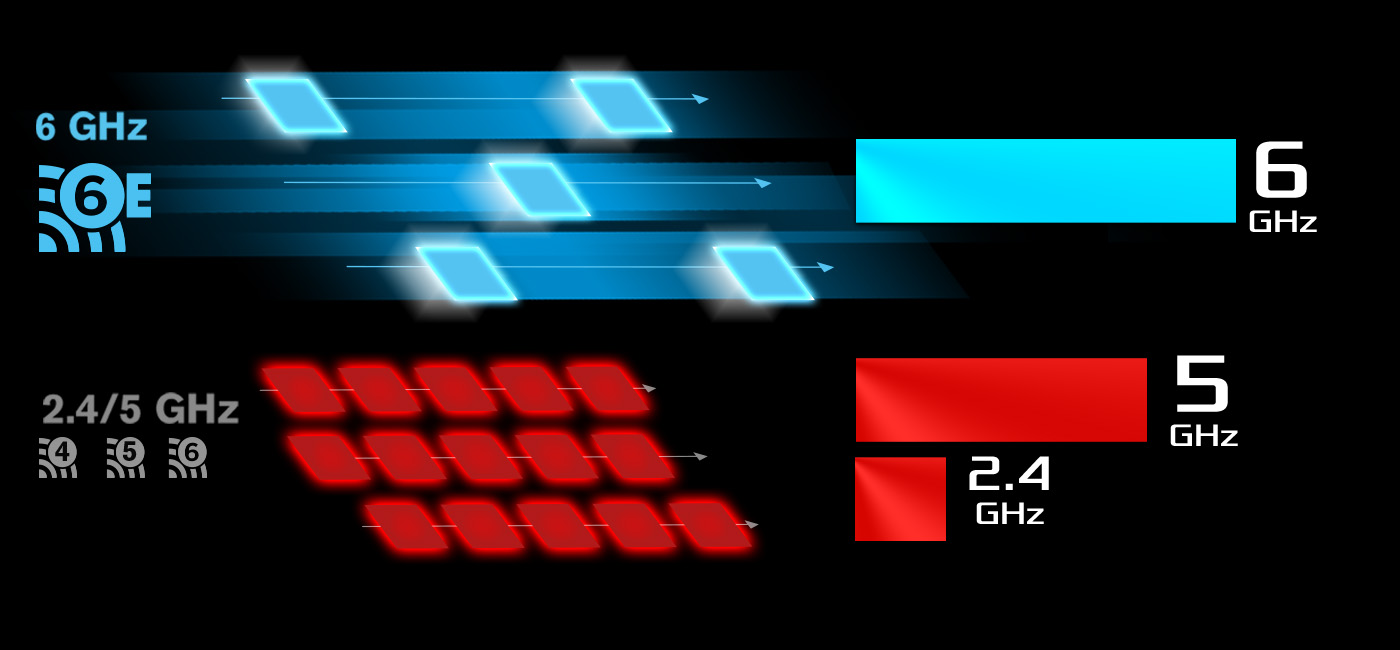

Wi-Fi 6E 802.11axe

WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.

Product Title Product Title

Dual LAN Design

Elevate your network's performance, security, and flexibility with our Dual LAN configuration. Experience 2.5Gbps and Gigabit speeds, while benefiting from failover protection, VLAN segmentation, and more.

Product Title Product Title

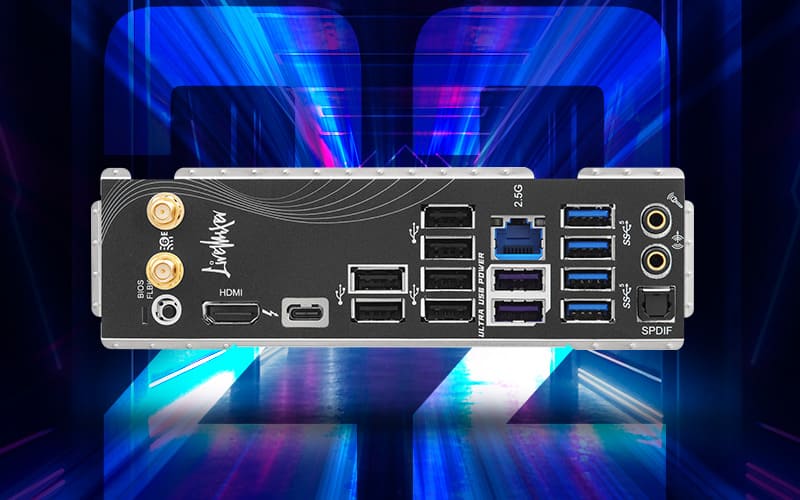

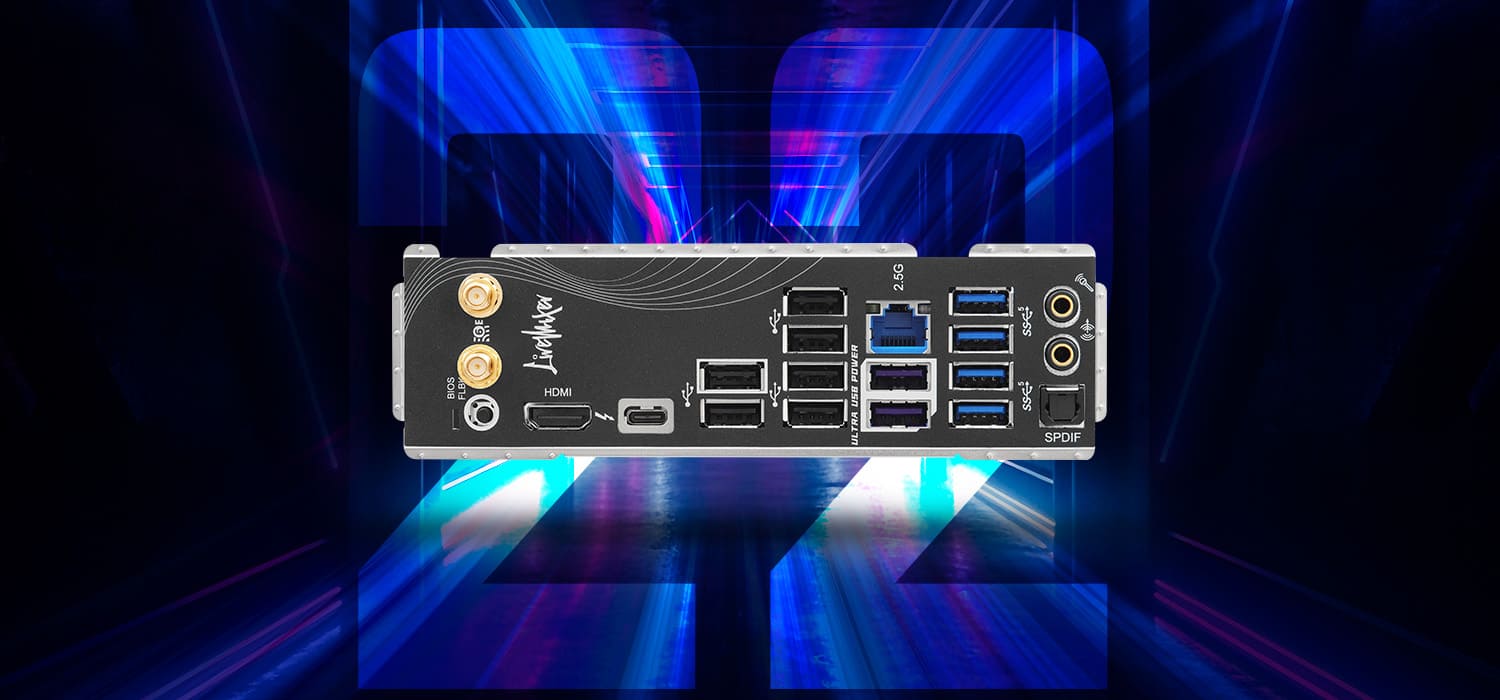

Up to USB 22 Ports (Front + Rear)

Featuring 22 USB ports, this design maximizes connectivity and provides more reliable and stable support for multiple auxiliary devices compared to external USB hubs.

Product Title Product Title

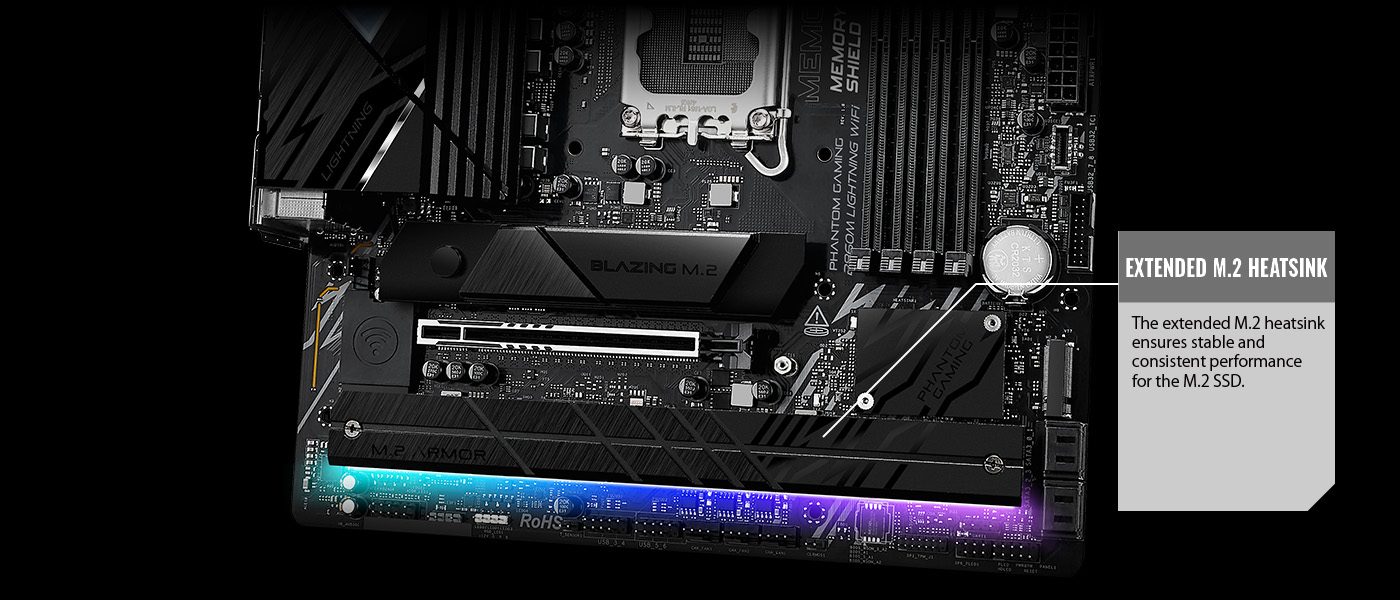

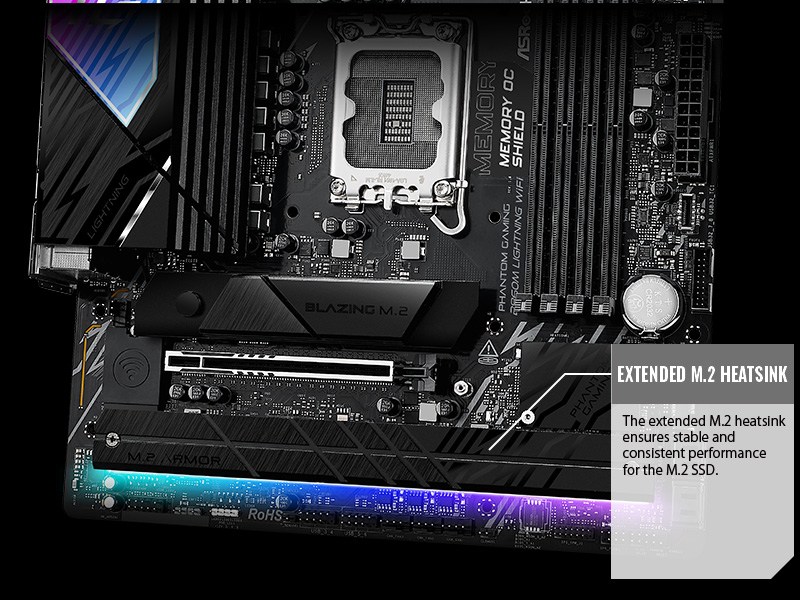

Extended M.2 Heatsink

The extended M.2 heatsink delivers superior cooling performance, effectively preventing thermal throttling to maintain stable and consistent M.2 SSD performance. Its design ensures that each M.2 SSD operates at full potential even under sustained workloads.

Product Title Product Title

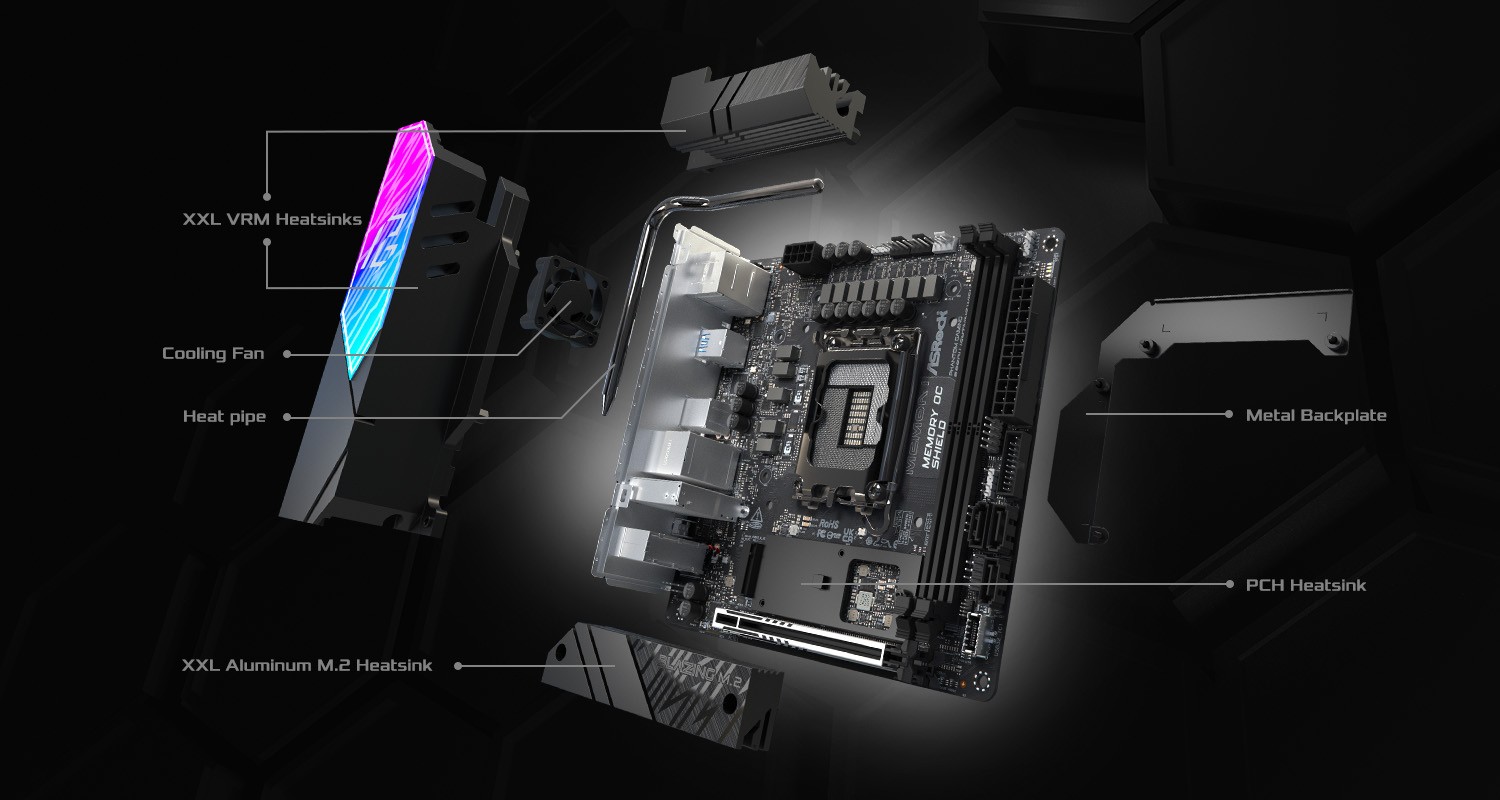

Composite Heatsinks Design

Equipped with XXL aluminum heatsinks that cover the VRM, PCH, and M.2 areas, providing enhanced heat dissipation for stable operation and optimal performance.

Product Title Product Title

Graphics Card Lite Release Design

Equipped with an enlarged latch for easy pressing, simplifying both the installation and removal of graphics cards.

M.2 Heatsink Toolless Design

M.2 Heatsink Toolless Design

Besides the M.2 SSD toolless design on the motherboard, ASRock up a notch by introducing this industry first M.2 heatsink quick release mechanism on the motherboard. The user friendly toolless design helps installing M.2 SSD super easy & simple.

M.2 Bottom Heatsink

M.2 Bottom Heatsink

The M.2 bottom heatsink is able to dissipate heat of the M.2 SSD efficiently through the motherboard PCB, maximize performance while maintaining system stability.

BIOS Flashback

Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and a power supply. No CPU, RAM or other components are required.

Product Title Product Title

SignalRGB

SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.

Product Title Product Title
*Features may vary by model.

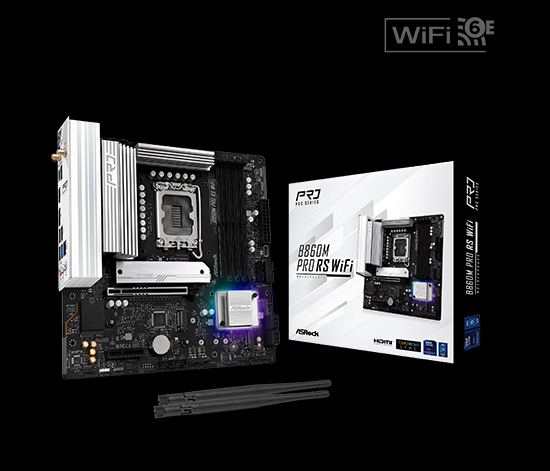

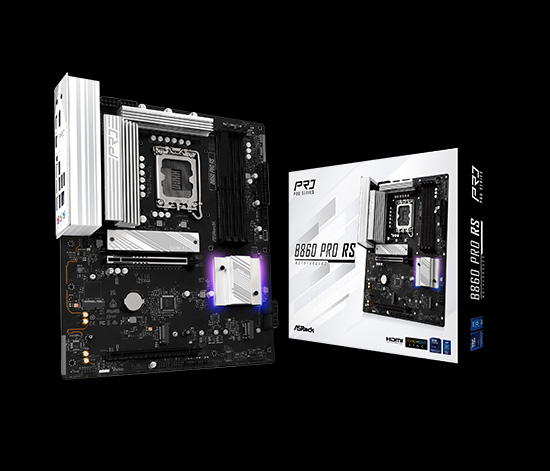

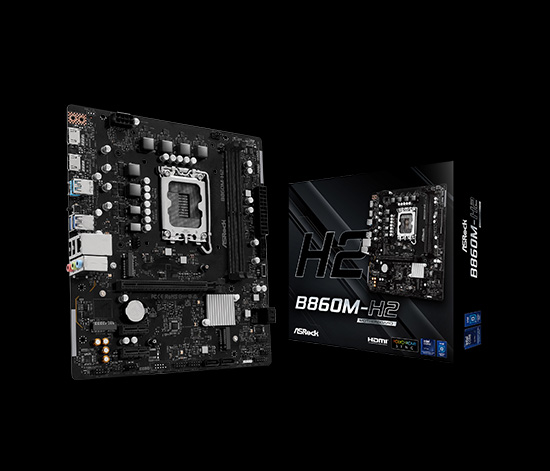

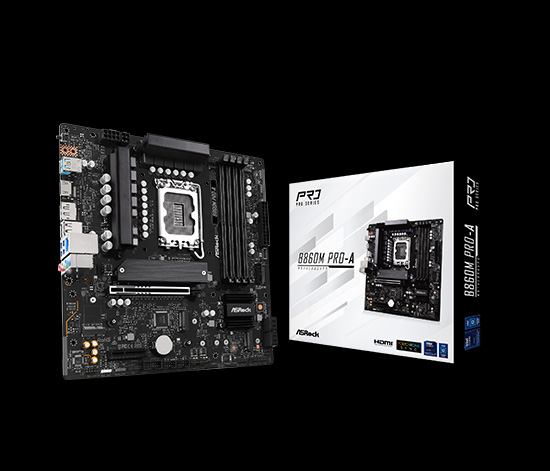

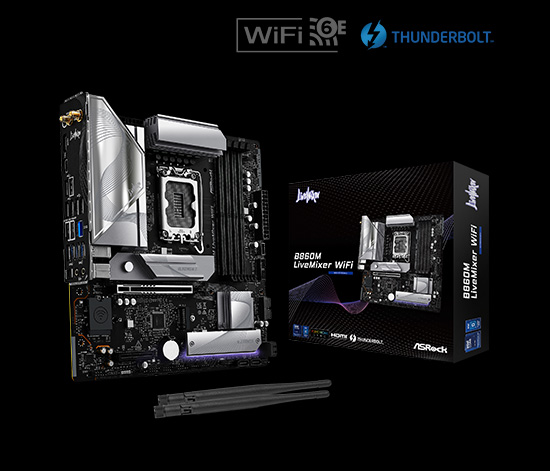

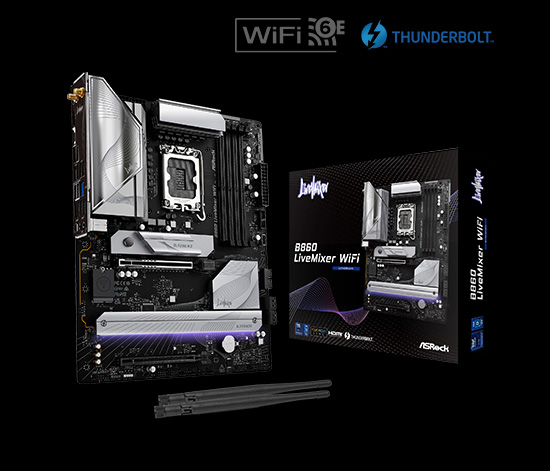

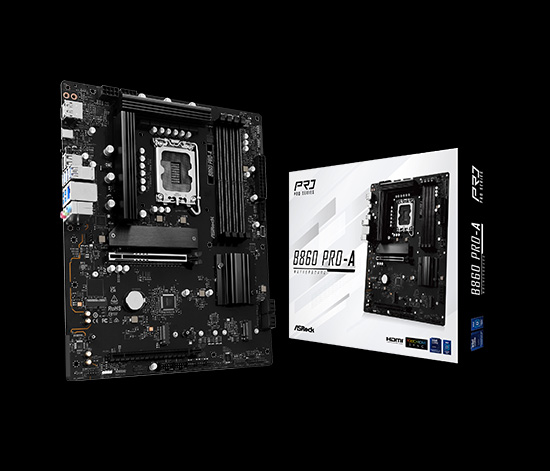

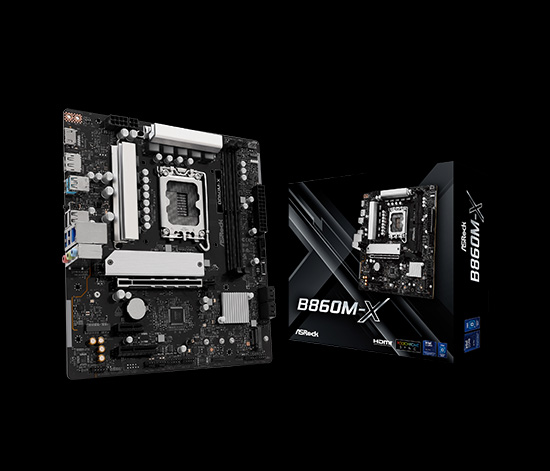

New B860 Series Motherboards
